P3

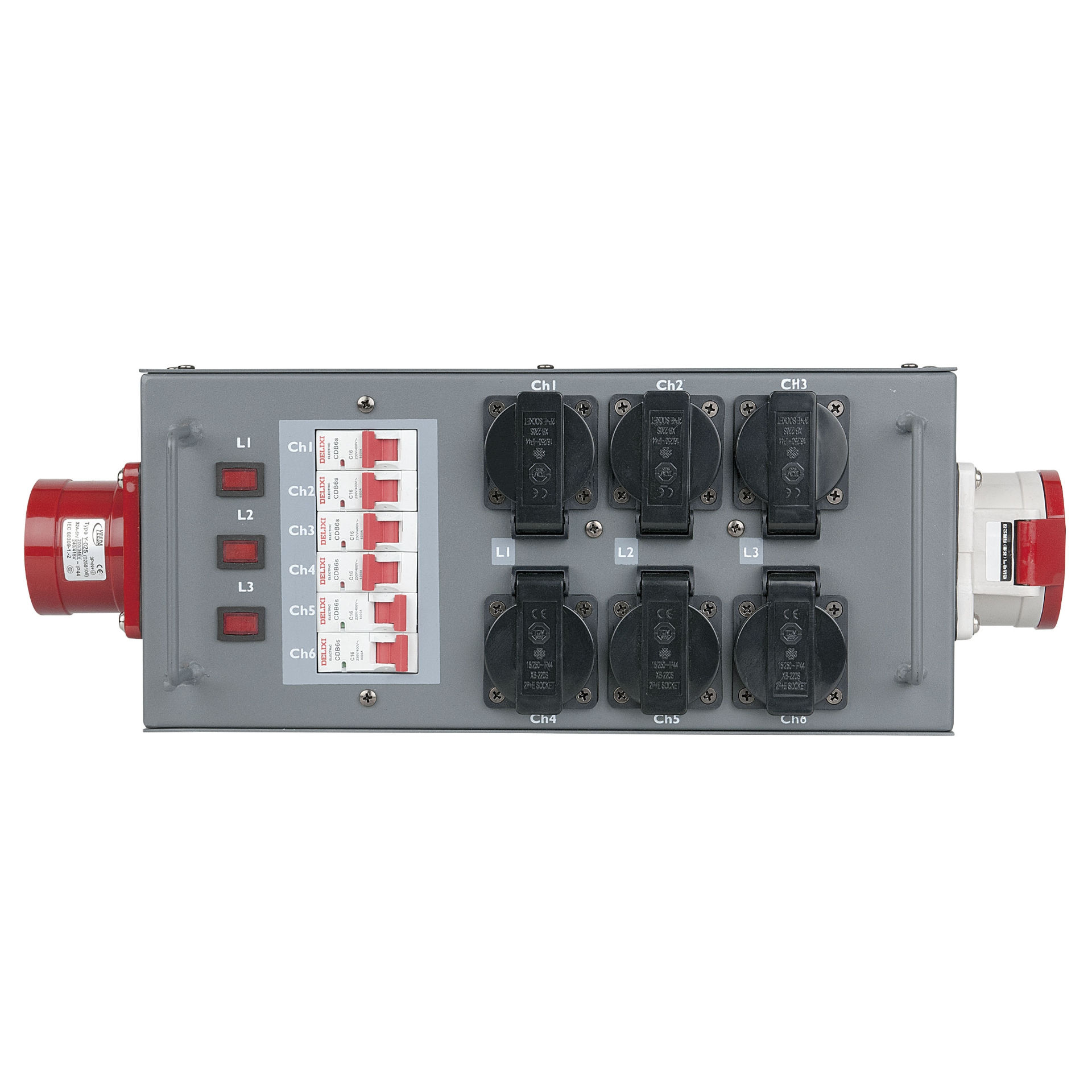

PSU 32A CEE > 6 x schuko (breaker) showtec
Korte beschrijving
32A CEE input / 2x16A CEE + 6x16A Schuko output / 10.2 kg
Lange beschrijving
Input: 1 x 32A CEE (5-pin) on back-panel with 1.5 m H07RN-F 5x4 mm² cable
Output: 2 x 16A CEE sockets (front-panel), 1 x 32A CEE socket (back-panel), 6 x 16A Schuko sockets (back-panel)
Voltage: 230V AC / 50 Hz
Max current: 32A per phase input
Protection: RCD 1 x 32A 0.03A, Circuit breakers 2 x 3-pin 16A C-Type, 3 x 1-pin 16A C-Type
Phase monitoring: 3 x fluorescent lamps
Housing: Steel, blue
Dimensions: 483 x 305 x 133 mm (L x W x H)
Weight: 10.2 kg
Output: 2 x 16A CEE sockets (front-panel), 1 x 32A CEE socket (back-panel), 6 x 16A Schuko sockets (back-panel)
Voltage: 230V AC / 50 Hz
Max current: 32A per phase input
Protection: RCD 1 x 32A 0.03A, Circuit breakers 2 x 3-pin 16A C-Type, 3 x 1-pin 16A C-Type
Phase monitoring: 3 x fluorescent lamps
Housing: Steel, blue
Dimensions: 483 x 305 x 133 mm (L x W x H)
Weight: 10.2 kg
