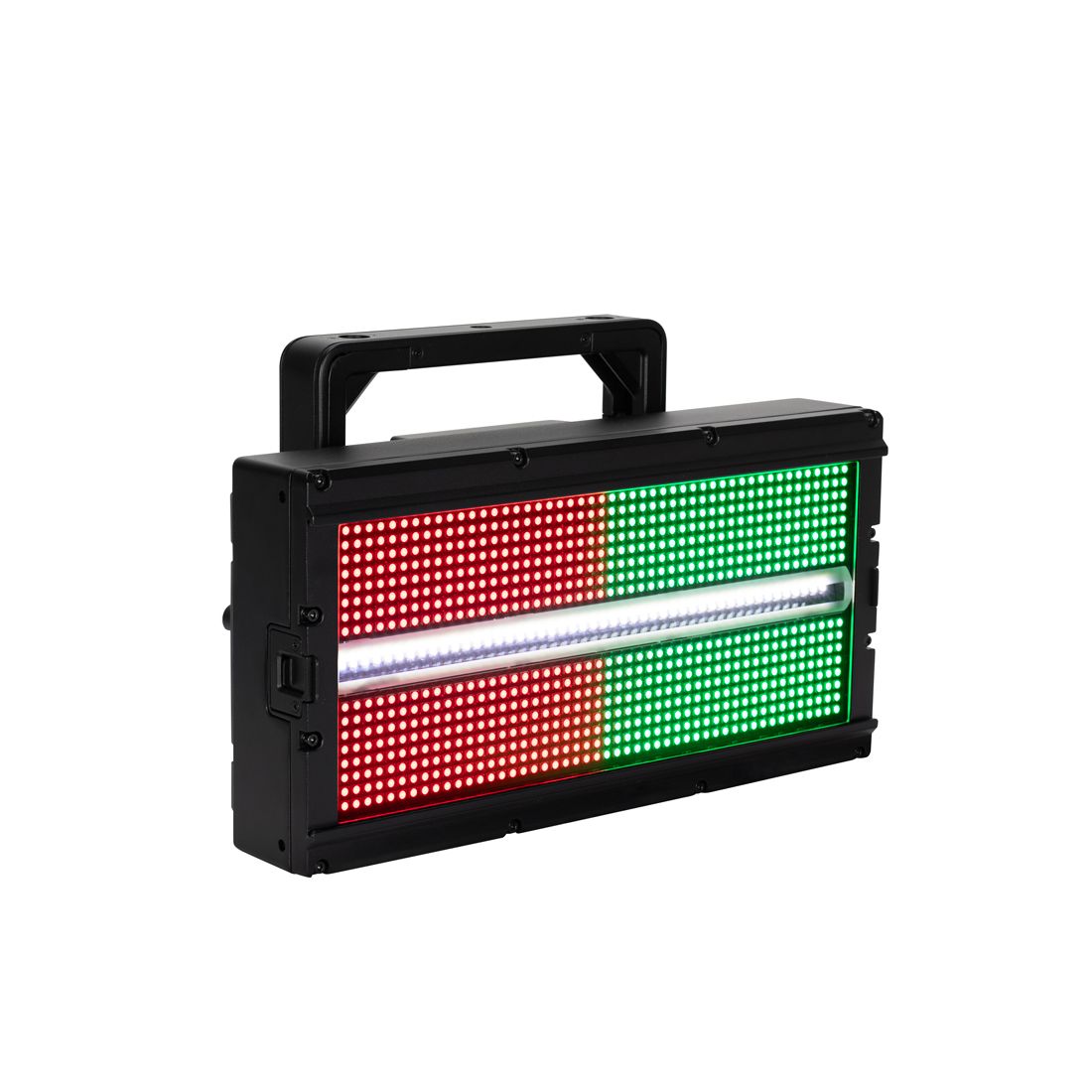

ADJ Jolt Panel FXIP
Korte beschrijving
48 × 5W cool white + 800 × 0.5W RGB LEDs / 214W @ 120V, 208W @ 230V / 6.2 kg / IP65
Lange beschrijving
LED source: 48 × 5-Watt cool white SMD LEDs + 800 × 0.5-Watt RGB SMD LEDs
Beam angle: 73°
Field angle: 111°
RGB color temperature: Red 620–630 nm, Green 515–525 nm, Blue 460–470 nm
Cool white color temperature: 6900–7400K
CRI: 69.4
LED life: 50,000 hours average
LED zones: 40 RGB zones + 6 cool white zones (independently controllable)
Strobe rate: 1–20 Hz
LED refresh rate: 900 Hz – 25 kHz
Power supply: 100–240V, 50/60 Hz (auto-sensing)
Max power consumption: 214W @ 120V; 208W @ 230V
Max power link: 6 fixtures @ 120V; 12 fixtures @ 230V
Fuse: T5A / 250V glass (5 × 20 mm)
Length: 153.8 mm
Width: 417 mm
Height: 263.5 mm
Weight: 6.2 kg
Connectors: 5-pin DMX in/out (IP65-rated); locking power in/out sockets (IP65-rated)
Wireless control: Aria X2 wireless DMX built-in
Rating: IP65
Beam angle: 73°
Field angle: 111°
RGB color temperature: Red 620–630 nm, Green 515–525 nm, Blue 460–470 nm
Cool white color temperature: 6900–7400K
CRI: 69.4
LED life: 50,000 hours average
LED zones: 40 RGB zones + 6 cool white zones (independently controllable)
Strobe rate: 1–20 Hz
LED refresh rate: 900 Hz – 25 kHz
Power supply: 100–240V, 50/60 Hz (auto-sensing)
Max power consumption: 214W @ 120V; 208W @ 230V
Max power link: 6 fixtures @ 120V; 12 fixtures @ 230V
Fuse: T5A / 250V glass (5 × 20 mm)
Length: 153.8 mm
Width: 417 mm
Height: 263.5 mm
Weight: 6.2 kg
Connectors: 5-pin DMX in/out (IP65-rated); locking power in/out sockets (IP65-rated)
Wireless control: Aria X2 wireless DMX built-in
Rating: IP65
