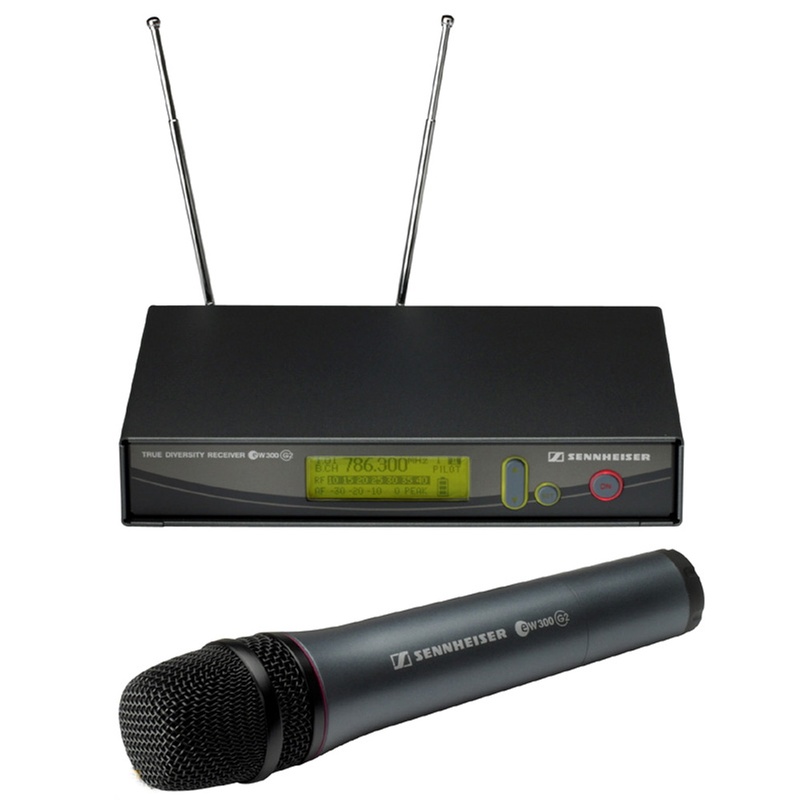

Sennheiser EW300 receiver
Korte beschrijving
UHF true diversity receiver / 12 V / 4.2 W / 0.98 kg
Lange beschrijving
True diversity UHF receiver
Operating voltage: 12 V DC (via external AC adapter)
Power consumption: 350 mA (4.2 W)
Dimensions: 212 × 202 × 43 mm
Weight: 980 g
Audio outputs: XLR-3M balanced (+18 dBu max), 6.3 mm jack unbalanced (+12 dBu max), 6.3 mm headphone jack
Antenna inputs: 2 × BNC (true diversity)
Tuning range: 42 MHz bandwidth; 1680 selectable UHF frequencies in 25 kHz steps
Frequency banks: 20 frequency banks with 24 preset channels each, plus 3 user-programmable banks
Receiver type: True diversity
Squelch: Pilot-tone squelch
AF frequency response: 25 Hz – 18 kHz
Display: Backlit graphic LCD
Connectivity: Ethernet port for Wireless Systems Manager software control
Operating voltage: 12 V DC (via external AC adapter)
Power consumption: 350 mA (4.2 W)
Dimensions: 212 × 202 × 43 mm
Weight: 980 g
Audio outputs: XLR-3M balanced (+18 dBu max), 6.3 mm jack unbalanced (+12 dBu max), 6.3 mm headphone jack
Antenna inputs: 2 × BNC (true diversity)
Tuning range: 42 MHz bandwidth; 1680 selectable UHF frequencies in 25 kHz steps
Frequency banks: 20 frequency banks with 24 preset channels each, plus 3 user-programmable banks
Receiver type: True diversity
Squelch: Pilot-tone squelch
AF frequency response: 25 Hz – 18 kHz
Display: Backlit graphic LCD
Connectivity: Ethernet port for Wireless Systems Manager software control
