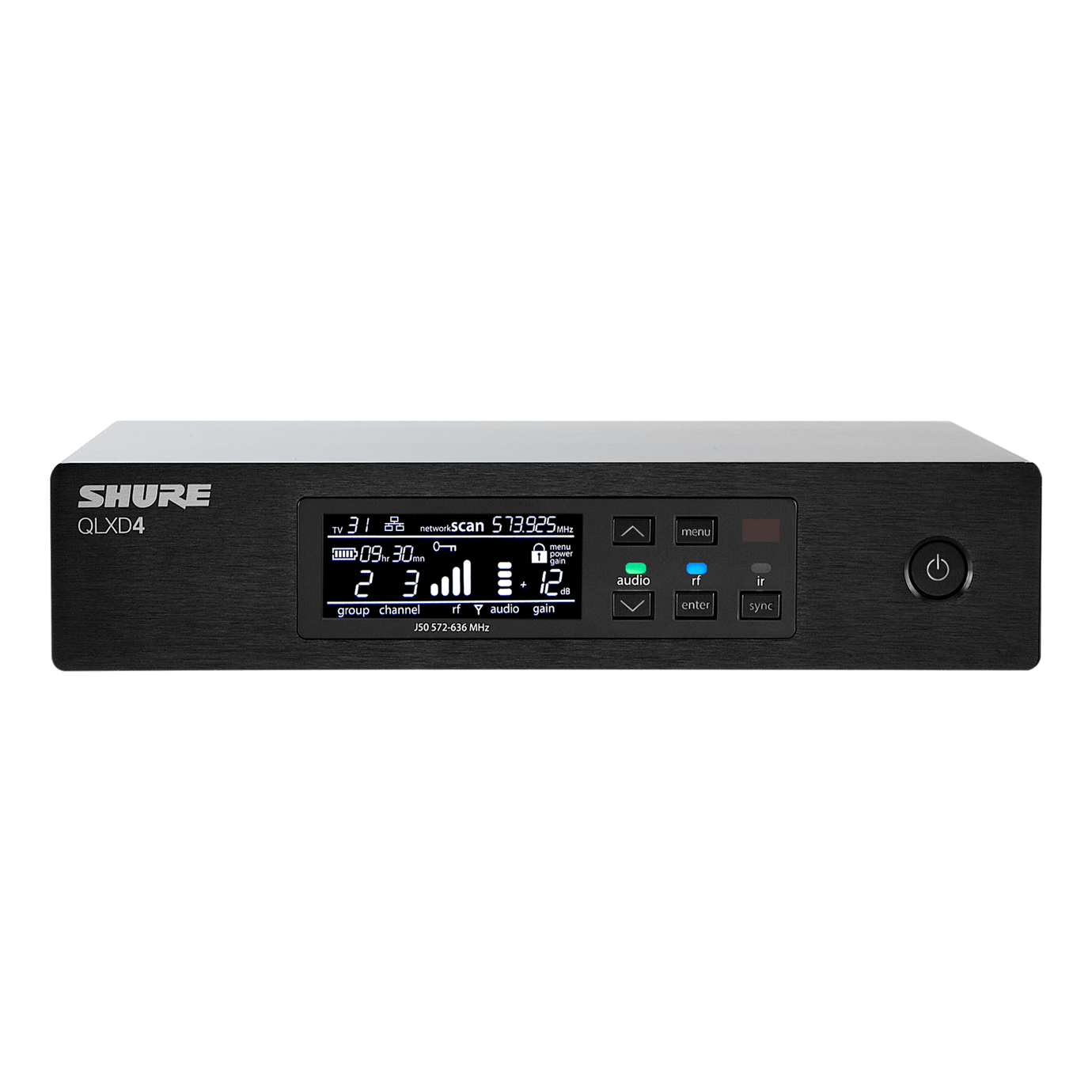

Shure QLX Quad receiver
Korte beschrijving
4× half-rack QLX-D receivers / 12V DC / ~3.1 kg
Lange beschrijving
Configuration: Four Shure QLXD4 single-channel digital wireless receivers in 2U rack mount
Power supply: 12V DC external supply
Power consumption: ~0.4A per receiver (4.8W per unit, ~19.2W total)
Dimensions per receiver: 4.1 cm (H) × 19.7 cm (W) × 15.1 cm (D)
Rack height (4 units): ~8.7 cm (2 rack units)
Weight per receiver: 0.777 kg
Total estimated weight: ~3.1 kg
Audio connectors: XLR and 1/4" (6.35 mm) on receivers; BNC for antenna connections
Encryption: AES 256-bit
Features: Ethernet networked control, Switching Diversity, LCD display, mic/line switch per receiver
Power supply: 12V DC external supply
Power consumption: ~0.4A per receiver (4.8W per unit, ~19.2W total)
Dimensions per receiver: 4.1 cm (H) × 19.7 cm (W) × 15.1 cm (D)
Rack height (4 units): ~8.7 cm (2 rack units)
Weight per receiver: 0.777 kg
Total estimated weight: ~3.1 kg
Audio connectors: XLR and 1/4" (6.35 mm) on receivers; BNC for antenna connections
Encryption: AES 256-bit
Features: Ethernet networked control, Switching Diversity, LCD display, mic/line switch per receiver
