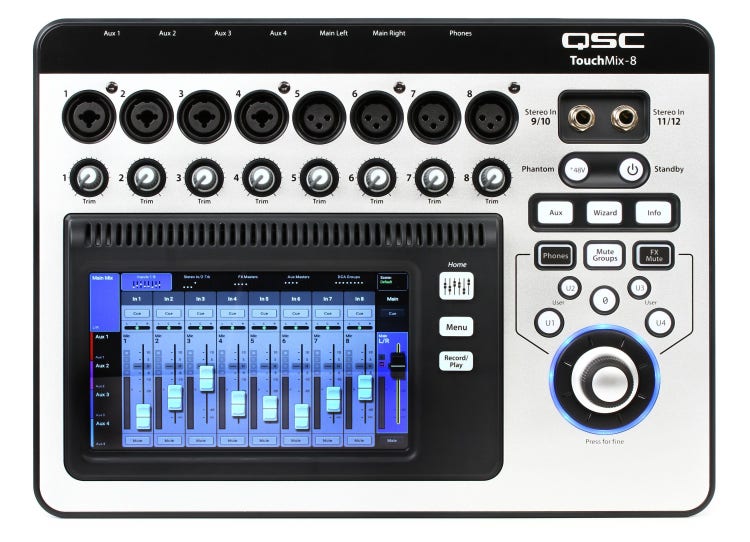

QSC touch mix 8
Korte beschrijving
14-channel compact digital mixer, 333×245×56 cm, 1.95 kg, 42 W power, XLR/TRS combo inputs, 7-inch touchscreen
Lange beschrijving
Type: Compact digital mixer
Channels: 14 total (8 mic/line, 4 line, 2-track stereo USB)
Inputs: 4 XLR/TRS combo (mic/line), 4 XLR (mic), 2 TRS (stereo line)
Outputs: Stereo Main L/R (XLR), 4 mono auxiliary mixes (XLR)
Display: 7-inch TFT color capacitive touchscreen
Processing: 32-bit floating point DSP, 24-bit AD/DA converters
Maximum output level: +22 dBu
Phantom power: 48 V (mic and talkback inputs, individually switchable)
Power supply: 42 W output (5V/15V/-15V)
Width: 33.3 cm
Depth: 24.5 cm
Height: 5.6 cm
Weight: 1.95 kg
Channels: 14 total (8 mic/line, 4 line, 2-track stereo USB)
Inputs: 4 XLR/TRS combo (mic/line), 4 XLR (mic), 2 TRS (stereo line)
Outputs: Stereo Main L/R (XLR), 4 mono auxiliary mixes (XLR)
Display: 7-inch TFT color capacitive touchscreen
Processing: 32-bit floating point DSP, 24-bit AD/DA converters
Maximum output level: +22 dBu
Phantom power: 48 V (mic and talkback inputs, individually switchable)
Power supply: 42 W output (5V/15V/-15V)
Width: 33.3 cm
Depth: 24.5 cm
Height: 5.6 cm
Weight: 1.95 kg
