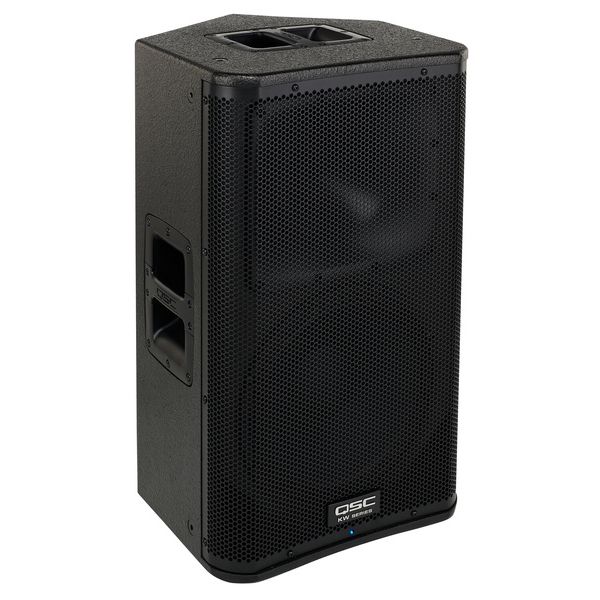

QSC KW122
Korte beschrijving
1000W / 12" 2-way / 22.2kg / 660×381×391mm
Lange beschrijving
Power: 1000W Class D (2 × 500W continuous, 2000W peak)
Transducers: 12-inch woofer, 1.75-inch diaphragm compression driver
Frequency Response: 53 Hz to 18 kHz (−6 dB)
Frequency Range: 50 Hz to 20 kHz (−10 dB)
Coverage: 75° conical DMT (Directivity Matched Transition)
Maximum SPL: 131 dB peak
Enclosure: Birch plywood, textured paint, 16-gauge steel grille
Height: 660 mm
Width: 381 mm
Depth: 391 mm
Weight: 22.2 kg
Inputs: Combo XLR/¼-inch, stereo RCA (3 audio sources)
Outputs: Two direct channel outputs, single summed balanced output
Features: M10 rigging points, 35mm pole sockets, monitor floor wedge function, onboard mixer, DSP with DEEP and Intrinsic Correction, GuardRail protection
Connectors: NL4 Speakon (audio output)
Transducers: 12-inch woofer, 1.75-inch diaphragm compression driver
Frequency Response: 53 Hz to 18 kHz (−6 dB)
Frequency Range: 50 Hz to 20 kHz (−10 dB)
Coverage: 75° conical DMT (Directivity Matched Transition)
Maximum SPL: 131 dB peak
Enclosure: Birch plywood, textured paint, 16-gauge steel grille
Height: 660 mm
Width: 381 mm
Depth: 391 mm
Weight: 22.2 kg
Inputs: Combo XLR/¼-inch, stereo RCA (3 audio sources)
Outputs: Two direct channel outputs, single summed balanced output
Features: M10 rigging points, 35mm pole sockets, monitor floor wedge function, onboard mixer, DSP with DEEP and Intrinsic Correction, GuardRail protection
Connectors: NL4 Speakon (audio output)
