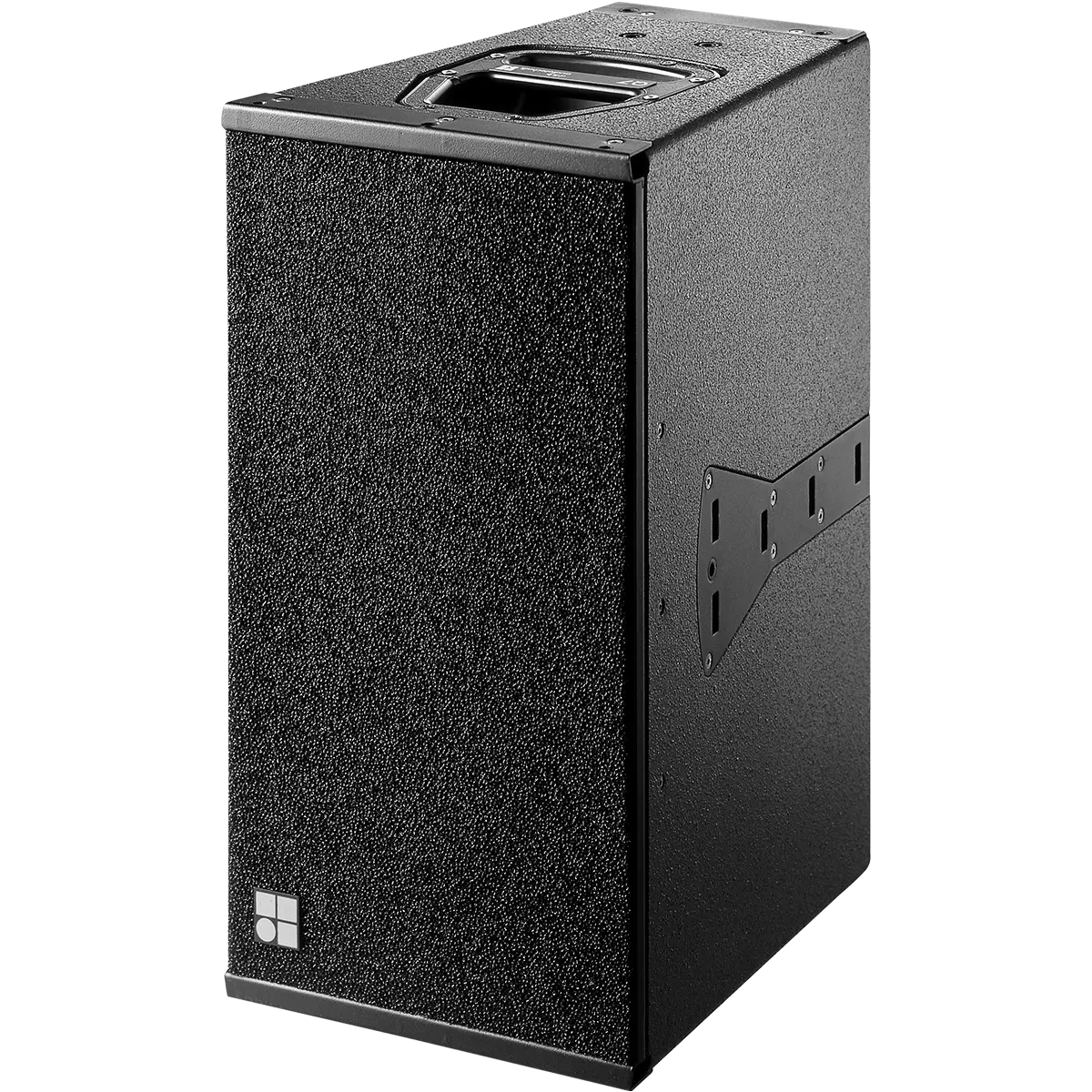

D&B audiotechnik Q7
Korte beschrijving
400/1600 W RMS/peak | 8Ω | 138 dB SPL @ 1m | 22 kg
Lange beschrijving
Type: Passive 2-way loudspeaker
Drivers: 2 x 10" neodymium LF / 1.3" HF compression driver
Impedance: 8 Ω
Power handling: 400 W RMS / 1600 W peak (10 ms)
Frequency response: 60–17 kHz (standard) / 100–17 kHz (CUT mode)
Max SPL: 138 dB @ 1 m (with D12/D20 amplifier)
Dispersion: 75° x 40° (rotatable horn)
Connectors: 2 x NL4 (Neutrik Speakon), wired in parallel
Dimensions: 58 cm H × 30.8 cm W × 41 cm D
Weight: 22 kg
Cabinet material: Marine plywood with impact resistant paint finish
Coverage: Rigid metal grille with acoustically transparent foam
Drivers: 2 x 10" neodymium LF / 1.3" HF compression driver
Impedance: 8 Ω
Power handling: 400 W RMS / 1600 W peak (10 ms)
Frequency response: 60–17 kHz (standard) / 100–17 kHz (CUT mode)
Max SPL: 138 dB @ 1 m (with D12/D20 amplifier)
Dispersion: 75° x 40° (rotatable horn)
Connectors: 2 x NL4 (Neutrik Speakon), wired in parallel
Dimensions: 58 cm H × 30.8 cm W × 41 cm D
Weight: 22 kg
Cabinet material: Marine plywood with impact resistant paint finish
Coverage: Rigid metal grille with acoustically transparent foam
