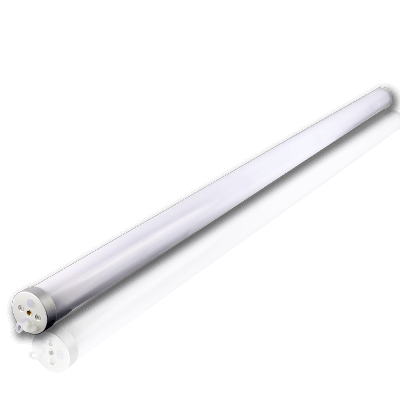

Astera AX1 Pixeltube

28W RGBW LED / 1 kg per tube / 1035 mm length / Ø42 mm / IP65 / 253–255 lux @ 1m / 20h battery runtime / Flight case 25 kg (holds 8 tubes + accessories)

LED Type: RGBW (16-pixel segments)
Total LED Power: 28W
LED Power Draw: 16W
Luminous Flux: 717–725 lm (3200–5500K)
Light Output: 253–255 lux @ 1m
Color Rendering Index (CRI/TLCI): ≤88
Beam Angle: 120°
Pixels: 16 individually addressable
Tube Length: 1035 mm
Tube Diameter: 42 mm
Tube Weight: 1 kg
Battery: Integrated lithium-ion (LG Chem)
Battery Runtime: Up to 20 hours
Battery Charging Time: 7 hours (nominal)
Battery Lifespan: 70% capacity after 300 cycles
IP Rating: IP65 (with silicon charging port cap)
Operating Temperature: 0–40 °C
Wireless Control: CRMX, UHF, Bluetooth
Wireless Range: Up to 300 m (CRMX/UHF)
Wireless Frequency Bands: 863–870 MHz / 902–928 MHz / 2.4 GHz
Strobe Rate: 0–25 Hz (adjustable)
DC Input (for charging): 48 VDC, 0.5 A via 5.5 × 2.1 mm connector
Housing: Polycarbonate with metal end caps
Included Accessories: Tube holders (×2), eyebolts (×2), foldable stand, body holder

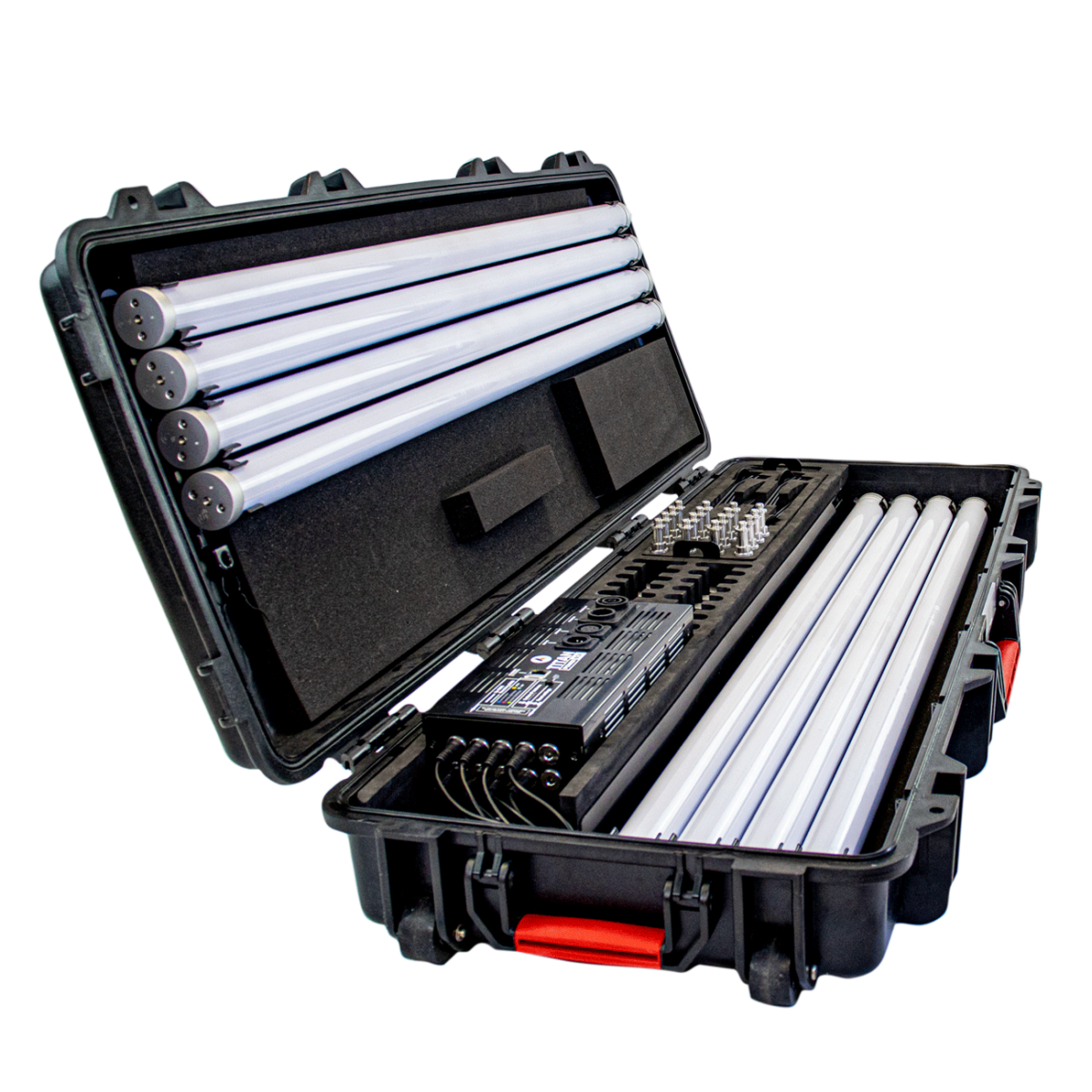

Charging Case: Astera flight case
Charging Case Weight: 25 kg
Charging Case Dimensions: 1147 × 443 × 157 mm
Charging Case Capacity: 8 AX1 PixelTubes
Charging Case Features: Built-in power supply, 8 DC charging cables, 16 spigots, wheels and handles
Full Package Weight (8 tubes + case): 33 kg
Full Package Dimensions (8 tubes + case): 1147 × 443 × 157 mm
Contents: Charging case (capacity for 8 AX1 PixelTubes)
