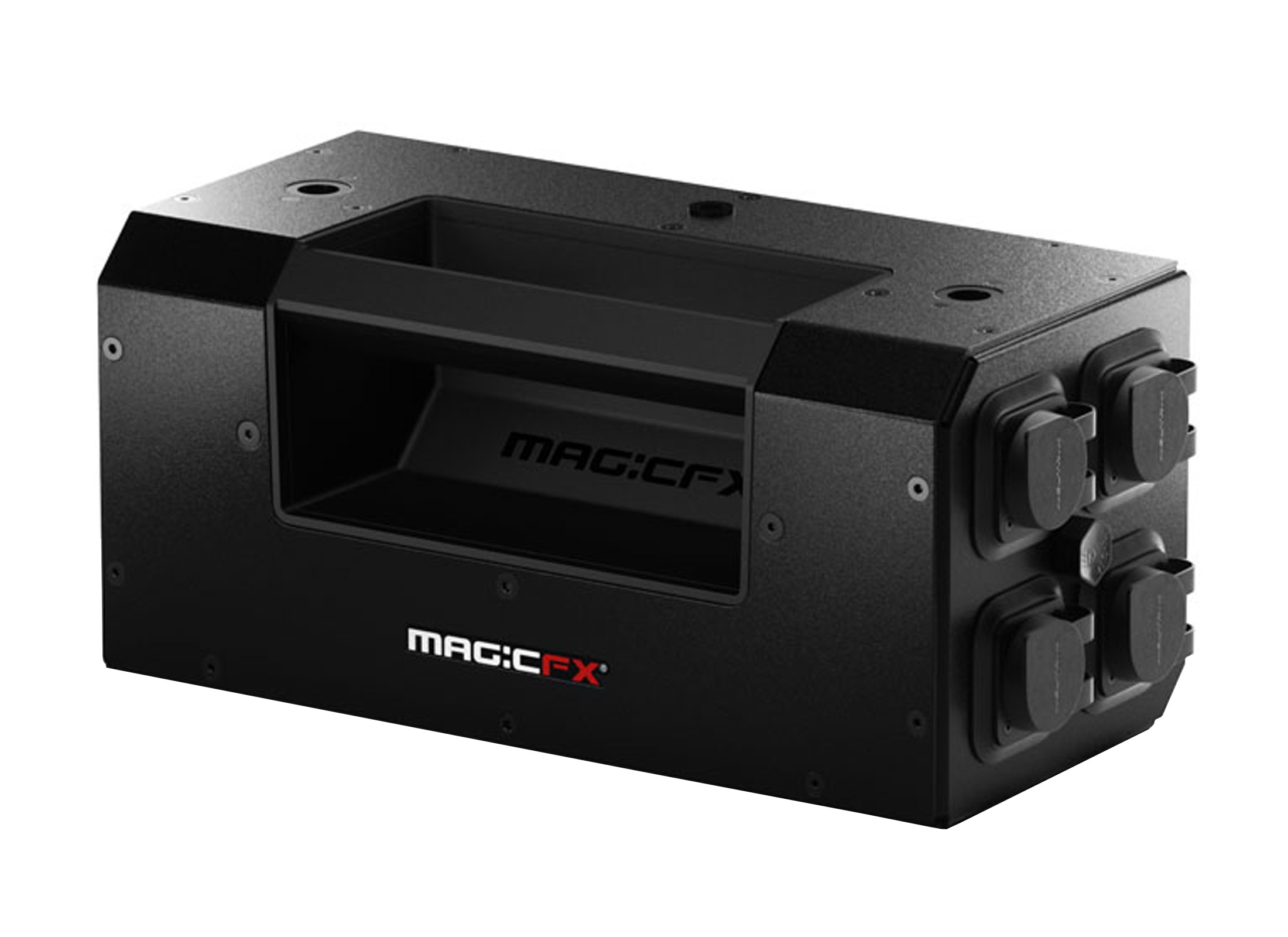

Magic fx Switch pack 4 channel
Korte beschrijving
230V AC / 16A total (3680W max) / 2.9 kg / 4 DMX-controlled outputs
Lange beschrijving
Input: 100-250V AC 50/60 Hz
Output: 4 switchable channels at 230V AC, max 5A per channel (1150W), 16A total (3680W)
Idle power consumption: 5W
DMX control: 3-pin Neutrik XLR In/Out with RDM support
Dimensions (L×W×H): 14 cm × 30.5 cm × 13.3 cm
Weight: 2.9 kg
Output fuse: 5A 250V 5×20 mm per channel
Features: Multi-relay system with dedicated DMX safety channel, FX warning LED, 4 resettable output fuses, mounting holes for M10 truss clamps
Output: 4 switchable channels at 230V AC, max 5A per channel (1150W), 16A total (3680W)
Idle power consumption: 5W
DMX control: 3-pin Neutrik XLR In/Out with RDM support
Dimensions (L×W×H): 14 cm × 30.5 cm × 13.3 cm
Weight: 2.9 kg
Output fuse: 5A 250V 5×20 mm per channel
Features: Multi-relay system with dedicated DMX safety channel, FX warning LED, 4 resettable output fuses, mounting holes for M10 truss clamps
