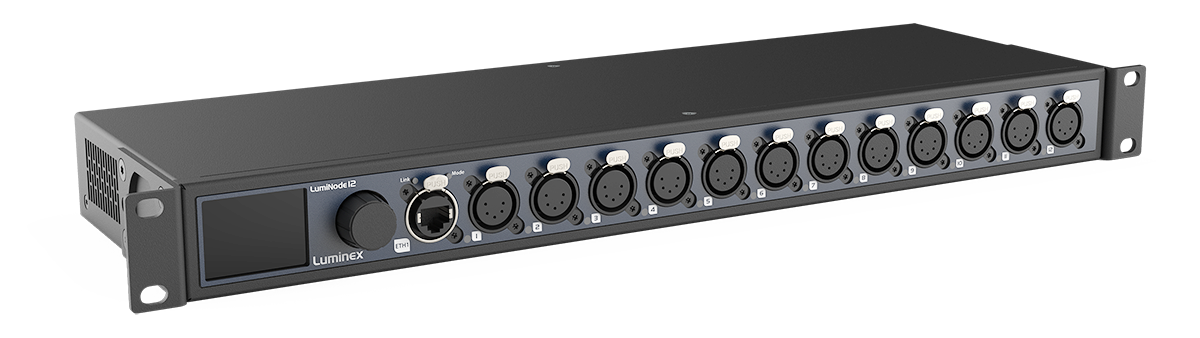

LumiNode 12
Korte beschrijving
<cite index="21-3">100-240VAC / 13 W max / 1.96 kg</cite>, <cite index="25-2">12x 5-pin DMX ports / 2x 1Gb Ethercon, full 19" rack mount</cite>
Lange beschrijving
<cite index="2-6">Ethernet/DMX processing device for converting, routing, and merging DMX/RDM data</cite>
<cite index="25-2,25-3">2x 1Gb Ethercon ports and 12x 5-pin DMX ports, fully isolated, configurable as input or output</cite>
<cite index="25-4">16 process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes</cite>
<cite index="25-4">Protocols: Art-Net, sACN, KiNET, RTTRpl (Blacktrax)</cite>
<cite index="24-2">Power input: 100-240VAC, 50/60Hz</cite>
<cite index="21-1">Power consumption: Max 13 W</cite>
<cite index="24-3">Connector: Neutrik powerCON TRUE1</cite>
<cite index="21-3">Dimensions (W x D x H): 482 x 150 x 44 mm</cite>
<cite index="21-3">Weight: 1.96 kg</cite>
<cite index="21-3">Enclosure: Robust all metal housing, full 19" rack mount</cite>
<cite index="21-3">Operating temperature: 0 to +50°C</cite>
Contents:
- 1x Powercon TrueOne Starter Short 0.5m
<cite index="25-2,25-3">2x 1Gb Ethercon ports and 12x 5-pin DMX ports, fully isolated, configurable as input or output</cite>
<cite index="25-4">16 process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes</cite>
<cite index="25-4">Protocols: Art-Net, sACN, KiNET, RTTRpl (Blacktrax)</cite>
<cite index="24-2">Power input: 100-240VAC, 50/60Hz</cite>
<cite index="21-1">Power consumption: Max 13 W</cite>
<cite index="24-3">Connector: Neutrik powerCON TRUE1</cite>
<cite index="21-3">Dimensions (W x D x H): 482 x 150 x 44 mm</cite>
<cite index="21-3">Weight: 1.96 kg</cite>
<cite index="21-3">Enclosure: Robust all metal housing, full 19" rack mount</cite>
<cite index="21-3">Operating temperature: 0 to +50°C</cite>
Contents:
- 1x Powercon TrueOne Starter Short 0.5m
