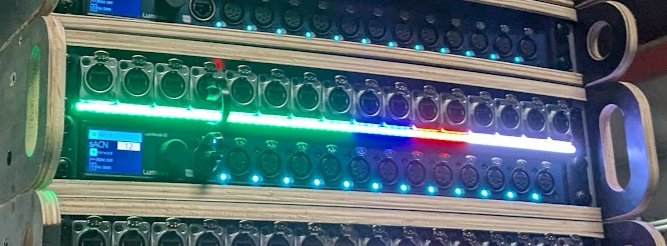

LumiNode 12 + Unifi Switch

Luminex LumiNode 12 DMX processor with Ubiquiti Pro Max 16 network switch; 2× 1Gb Ethercon / 12× DMX ports, 16-port Layer 3 2.5GbE switch; 56 × 53 × 12 cm

Luminex LumiNode 12 Ethernet/DMX processing node with 16 onboard processing engines and Ubiquiti Pro Max 16 Layer 3 managed network switch.

LumiNode 12:
Ethernet ports: 2× 1Gb Ethercon
DMX ports: 12× 5-pin XLR (fully isolated, configurable in/out)
Protocols: Art-Net, sACN, KiNET, RTTRpl supported
Merging modes: HTP, LTP, Crossfade, Backup, Switch, Custom
Power input: 100-240VAC 50-60Hz
Power consumption: 13 W max
Power connector: Neutrik Powercon TrueOne
Enclosure: All-metal 19" rack mount (1U height)
Management: Web server, Web API, color display with jog control
VLAN/Group support: Yes

Ubiquiti Pro Max 16:
Ethernet ports: 12× 1Gbps RJ45, 4× 2.5Gbps RJ45
Uplink ports: 2× 10G SFP+
Switching capacity: 84 Gbps
Forwarding rate: 62 Mpps
Layer 3: Yes
Etherlighting: Yes (configurable port status colors)
Power supply: External AC/DC adapter
Power consumption: 25 W max
Dimensions: 325.1 × 160 × 43.7 mm
Enclosure: Galvanized steel
Form factor: Rack mount (1U), desktop, wall mountable
Operating temperature: -5 to 40 °C

Kit contents:
- 1× Ubiquiti Pro Max 16
- 1× Network CAT6 SFTP 0.2m
- 1× Powercon TrueOne Starter 0.5m

Overall dimensions (as packaged): 56 × 53 × 12 cm
Weight: ~4.6 kg
