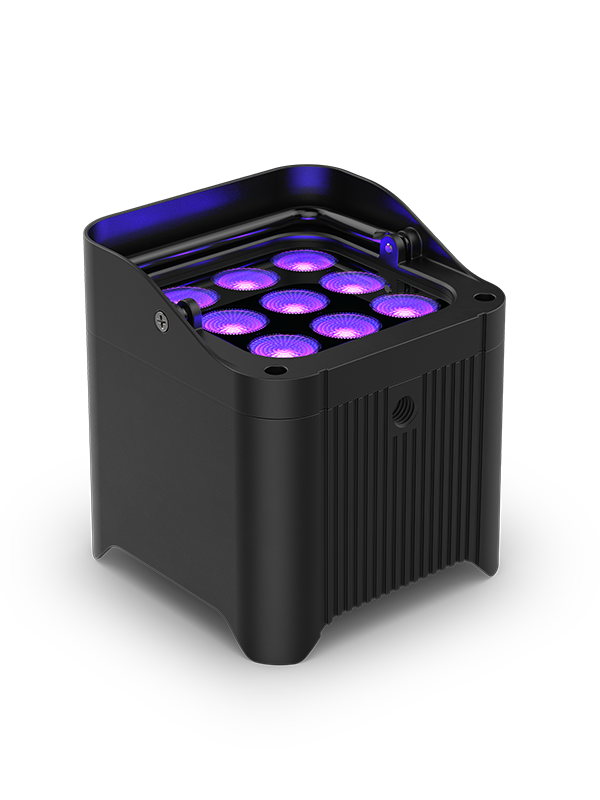

Uplighter Chauvet freedom H9 IP
Korte beschrijving
50 W / 9x 10W RGBAW+UV LEDs / 1,258 lumens / 2.1 kg
Lange beschrijving
Light Source: 9 LEDs (hex-color RGBAW+UV, 10 W each, 50,000 hours life expectancy)
Lumens: 1,258
Illuminance: 1,249 lux @ 2 m
Beam Angle: 23°
Field Angle: 46°
Beam Angle (with diffuser): 40°
Field Angle (with diffuser): 79°
Illuminance (with diffuser): 432 lux @ 2 m
Power Consumption: 50 W @ 120 V (0.7 A), 50 W @ 230 V (0.4 A)
Input Voltage: 24 VDC, 1.5 A (external power supply, 50/60 Hz)
DMX Channels: 6, 8, or 16
Strobe Rate: 1 to 25 Hz
Operating Frequency: 2.412 to 2.484 GHz (D-Fi wireless DMX)
Wireless Control: D-Fi transceiver, RF remote (RFC/RFC-XL)
Battery Runtime: 3, 5, 8, or 12 hours (adjustable)
Recharge Time: 3 hours
IP Rating: IP54
Mounting: M12 bracket mounting hole
Dimensions: 120 x 120 x 126 mm (width x depth x height)
Weight: 2.1 kg
Color Temperature: 2,800K to 10,000K (variable with RGBAW+UV)
Operating Temperature: -20°C to 45°C (startup), -30°C to 45°C (operating)
Approvals: CE, UKCA, RoHS, FCC
Lumens: 1,258
Illuminance: 1,249 lux @ 2 m
Beam Angle: 23°
Field Angle: 46°
Beam Angle (with diffuser): 40°
Field Angle (with diffuser): 79°
Illuminance (with diffuser): 432 lux @ 2 m
Power Consumption: 50 W @ 120 V (0.7 A), 50 W @ 230 V (0.4 A)
Input Voltage: 24 VDC, 1.5 A (external power supply, 50/60 Hz)
DMX Channels: 6, 8, or 16
Strobe Rate: 1 to 25 Hz
Operating Frequency: 2.412 to 2.484 GHz (D-Fi wireless DMX)
Wireless Control: D-Fi transceiver, RF remote (RFC/RFC-XL)
Battery Runtime: 3, 5, 8, or 12 hours (adjustable)
Recharge Time: 3 hours
IP Rating: IP54
Mounting: M12 bracket mounting hole
Dimensions: 120 x 120 x 126 mm (width x depth x height)
Weight: 2.1 kg
Color Temperature: 2,800K to 10,000K (variable with RGBAW+UV)
Operating Temperature: -20°C to 45°C (startup), -30°C to 45°C (operating)
Approvals: CE, UKCA, RoHS, FCC
